ABAP HANA 7.51: BASE, CORRESPONDING & MOVE-CORRESPONDING Operators
The BASE operator is used as a baseline for ABAP operations and has multiple uses. e.g. it can be used for data insertion and baselining when comparing data. With help of CORRESPONDING & MOVE-CORRESPONDING Operators, data movement and copying is made easier now.
Please refer to below examples to see the overview of the capabilities of BASE, CORRESPONDING & MOVE-CORRESPONDING Operators.
Sample Source Code: Variant 1 – BASE before an Internal table can be used for
insert
TYPES ltty_days TYPE TABLE OF string WITH EMPTY KEY.
WRITE : / |Variant 1 : BASE before an Internal table used for insert|.
DATA(lt_days) =
VALUE ltty_days(
( `Mon` ) ( `Tue` ) ( `Wed` ) ).
lt_days =
VALUE #(
BASE lt_days
( `Thu` ) ( `Fri` ) ( `Sat` ) ( `Sun` ) ).
loop at lt_days ASSIGNING FIELD-SYMBOL(<lfs_days>).
WRITE : / |{ <lfs_days> }|.
ENDLOOP.

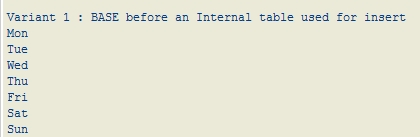

Output: Variant 1
Sample Source Code: Variant 2 – Usage with CORRESPONDING operator on Work area
WRITE : / |Variant 2 : usage with CORRESPONDING operator on Work area|.
TYPES:
BEGIN OFlty_type1,
field1 TYPE i,
END OF lty_type1,
ltty_type1 TYPE TABLE OF lty_type1 WITH EMPTY KEY,
BEGIN OF lty_type2,
field1 TYPE i,
field2 TYPE i,
END OF lty_type2,
ltty_type2 TYPE TABLE OF lty_type2 WITH EMPTY KEY.
DATA(lwa_type1) = VALUE lty_type1( field1 = 1 ).
DATA(lwa_type2) = VALUE lty_type2( field1 = 2 field2 = 3 ).
MOVE-CORRESPONDING
lwa_type1 TO lwa_type2.
WRITE : / lwa_type2–field1, space, lwa_type2–field2.
“Reverting back to original
lwa_type2 = VALUE lty_type2( field1 = 2 field2 = 3 ).
lwa_type2 = CORRESPONDING #( lwa_type1 ).
WRITE : / lwa_type2–field1, space, lwa_type2–field2.
“Reverting back to original
lwa_type2 = VALUE lty_type2( field1 = 2 field2 = 3 ).
lwa_type2 = CORRESPONDING #( BASE ( lwa_type2 ) lwa_type1 ).
WRITE : / lwa_type2–field1, space, lwa_type2–field2.
Output: Variant 2
Sample Source Code: Variant 3 – Usage with CORRESPONDING operator on Internal
table
WRITE : / |Variant 3 : usage with CORRESPONDING operator on Internal table|.
DATA(lt_type1) = VALUE ltty_type1( ( field1 = 1 )
( field1 = 2 ) ).
DATA(lt_type2) = VALUE ltty_type2( ( field1 = 3 field2 = 4 )
( field1 = 5 field2 = 6 )
( field1 = 7 field2 = 8 ) ).
MOVE-CORRESPONDING
lt_type1 TO lt_type2.
WRITE : / |MOVE-CORRESPONDING lt_type1 TO lt_type2.|.
LOOP AT lt_type2 ASSIGNING FIELD-SYMBOL().
WRITE : / –field1, space, –field2.
ENDLOOP.
“Reverting back
lt_type2 = VALUE ltty_type2( ( field1 = 3 field2 = 4 )
( field1 = 5 field2 = 6 )
( field1 = 7 field2 = 8 ) ).
MOVE-CORRESPONDING lt_type1 TO lt_type2 KEEPING TARGET LINES.
WRITE : / |MOVE-CORRESPONDING lt_type1 TO lt_type2 KEEPING TARGET LINES.|.
LOOP AT lt_type2 ASSIGNING <lfs_type2>.
WRITE : / –field1, space, –field2.
ENDLOOP.
“Reverting back
lt_type2 = VALUE ltty_type2( ( field1 = 3 field2 = 4 )
( field1 = 5 field2 = 6 )
( field1 = 7 field2 = 8 ) ).
lt_type2 = CORRESPONDING #( BASE ( lt_type2 ) lt_type1 ).
WRITE : / |lt_type2 = CORRESPONDING #( BASE ( lt_type2 ) lt_type1 ).|.
LOOP AT lt_type2 ASSIGNING <lfs_type2>.
WRITE : / –field1, space, –field2.
ENDLOOP.

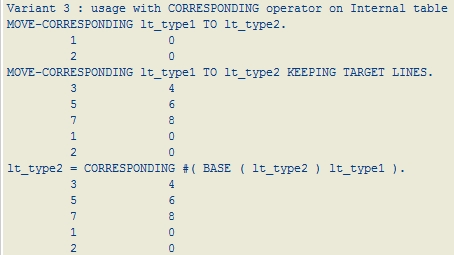

Output: Variant 3
Sample Source Code: Variant 4 – CORRESPONDING – BASE – MAPPING
WRITE : / |Variant 4 : CORRESPONDING – BASE – MAPPING|.
lt_type2 = VALUE ltty_type2( ( field1 = 23 field2 = 24 )
( field1 = 25 field2 = 26 )
( field1 = 27 field2 = 28 ) ).
TYPES : BEGIN OF lty_type3,
field1 TYPE i,
field3 TYPE i,
END OF lty_type3,
ltty_type3 TYPE TABLE OF lty_type3 WITH EMPTY KEY.
DATA(lt_type3) = VALUE ltty_type3( ( field1 = 33 field3 = 30 )
( field1 = 35 field3 = 30 )
( field1 = 37 field3 = 30 ) ).
lt_type3 = CORRESPONDING #( BASE ( lt_type3 ) lt_type2 ).
WRITE : / |lt_type3 = CORRESPONDING #( BASE ( lt_type3 ) lt_type2 ).|.
LOOP AT lt_type3 ASSIGNING FIELD-SYMBOL().
WRITE : / –field1, space, –field3.
ENDLOOP.
” Reverting back values
lt_type3 = VALUE ltty_type3( ( field1 = 33 field3 = 30 )
( field1 = 35 field3 = 30 )
( field1 = 37 field3 = 30 ) ).
lt_type3 = CORRESPONDING #( BASE ( lt_type3 ) lt_type2 MAPPING field3 = field2 ).
” Above DISCARDING DUPLICATES
WRITE : / |lt_type3 = CORRESPONDING #( BASE ( lt_type3 ) lt_type2 MAPPING field3 = field2 ).|.
LOOP AT lt_type3 ASSIGNING <lfs_type3>.
WRITE : / –field1, space, –field3.
ENDLOOP.

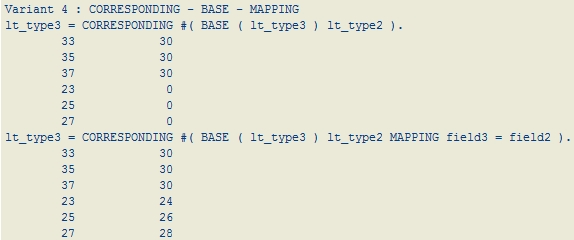

Output: Variant 4
Sample Source Code: Variant 5 – CORRESPONDING – BASE – EXCEPT
” MAPPING & EXCEPT can come separately or together
” if both come together, EXCEPT come after MAPPING
WRITE : / |Variant 5 : CORRESPONDING – BASE – EXCEPT|.
TYPES : BEGIN OF lty_type4,
field1 TYPE i,
field2 TYPE i,
field3 TYPE i,
END OF lty_type4,
ltty_type4 TYPE TABLE OF lty_type4 WITH EMPTY KEY.
“Reverting back values
lt_type2 = VALUE ltty_type2( ( field1 = 23 field2 = 24 )
( field1 = 25 field2 = 26 ) ).
DATA(lt_type4) = VALUE ltty_type4( ( field1 = 43 field2 = 41 field3 = 40 )
( field1 = 45 field2 = 42 field3 = 40 ) ).
lt_type4 = CORRESPONDING #( lt_type2 ).
WRITE : / |lt_type4 = CORRESPONDING #( lt_type2 ).|.
LOOP AT lt_type4 ASSIGNING FIELD-SYMBOL().
WRITE : / –field1, space, –field2, space, –field3.
ENDLOOP.
lt_type4 = CORRESPONDING #( lt_type2 EXCEPT field2 ).
WRITE : / |lt_type4 = CORRESPONDING #( lt_type2 EXCEPT field2 ).|.
LOOP AT lt_type4 ASSIGNING <lfs_type4>.
WRITE : / –field1, space, –field2, space, –field3.
ENDLOOP.
lt_type4 = CORRESPONDING #( lt_type2 MAPPING field2 = field2 EXCEPT * ).
WRITE : / |lt_type4 = CORRESPONDING #( lt_type2 MAPPING field2 = field2 EXCEPT * ).|.
LOOP AT lt_type4 ASSIGNING <lfs_type4>.
WRITE : / –field1, space, –field2, space, –field3.
ENDLOOP.

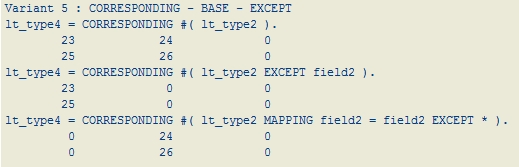

Output: Variant 5
Check the video for Illustration and Example:
Coming Soon!
Find the code on GitHub:
